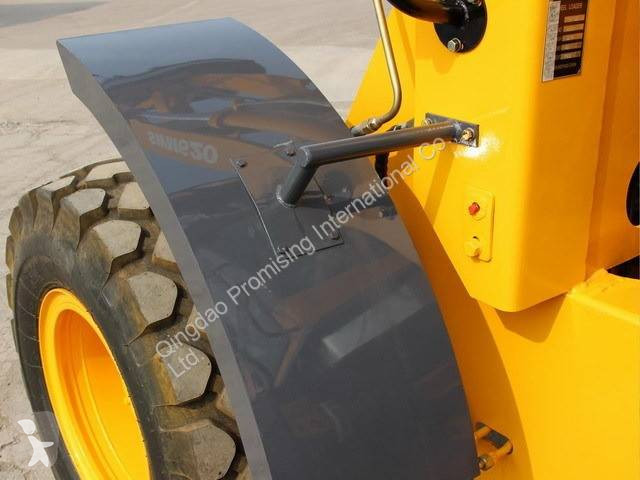

Læsser på dæk ny Qingdao Promising Compact CE Wheel Loader ZL18F Diesel

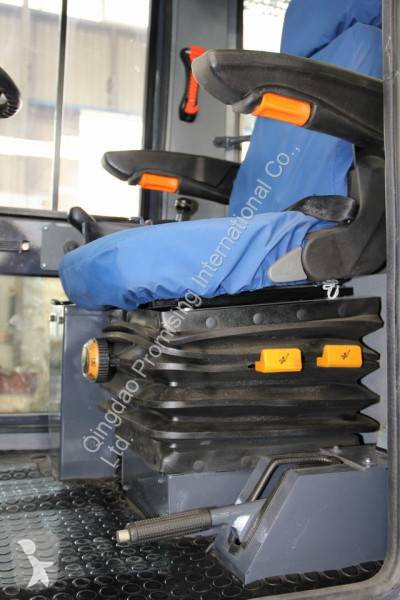

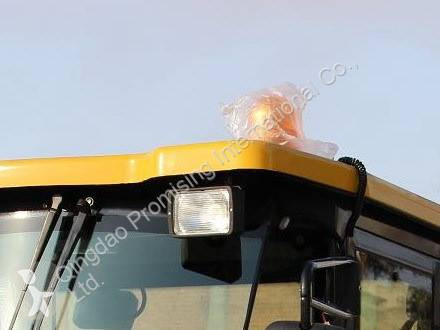

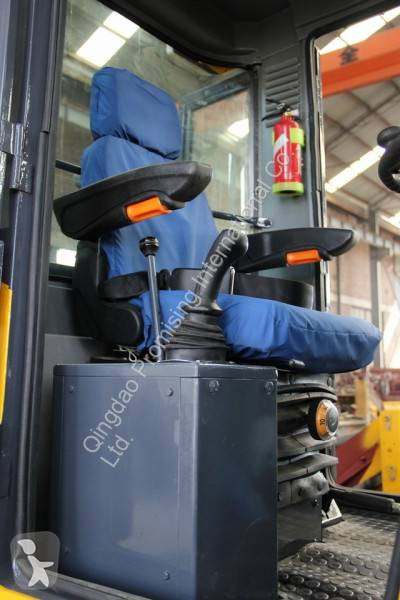

1.8 ton capacity small front loader with enclosed tilt cabin, adjustable suspension seat, digital radio & MP3 player, reversing camera and top beacon; optional hydraulic joystick control, hydraulic quick hitch, and air conditioner

Hydraulic Wheel Loader ZL18F
Technical Specifications
1. Rated Load: 1800kg
2. Operating Weight: 5650kg
3. Rated Bucket Capacity: 0.85CBM
4. Bucket Width: 1900mm
5. Max. Breakout Force: 45KN
6. Max. Tilt Angle of Cabin: 30deg.
7. Max. Dumping Height: 2800mm
8. Max. Dumping Reach: 1050mm
9. Raising Time: < 5.0s
10. Min. Ground Clearance: 350mm
11. Overall Dimensions (L x W x H): 5600x1950x2750mm
12. Min. Turning Radius: 4600mm
13. Engine Model: WEICHAIHUAFENG ZHBG41
14. Engine Type: Four-cylinder, Inline, Water-cooled Evaporative, Four-stroke Diesel Engine
15. Rated Engine Power: 47kW
16. Rated Engine Speed: 2400rpm
17. Min. Fuel Consumption Rate: 258.4g/kW.h
18. Transmission Mode: ZL280 Integrated/Split Hydraulic Torque Converter
19. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
20. Max. Speed: 25km/h
21. Mode of Axle: ZL16 Hub Reduction Drive Axle
22. Wheel Tread: 1500mm
23. Wheel Base: 2150mm
24. Drive Mode: 4-wheel Drive
25. Hydraulic System Working Pressure: 20Mpa
26. Hydraulic System Working Pump Type: Gear Pump

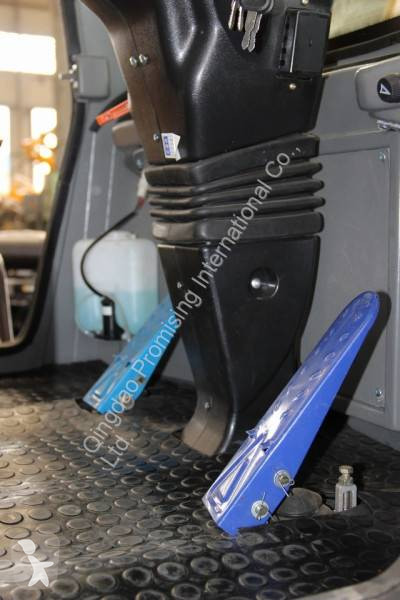

27. Service Brake: Foot Pedal Vacuum Booster, Air over Hydraulic Caliper Disc Brake on 4 Wheels
28. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake
29. Tyre Type Specification: 16/70-20-16PR
30. Front Tyre Pressure: 0.40Mpa
31. Rear Tyre Pressure: 0.35Mpa

Note:
1. All photos are for reference only.
2. Machines shown may include optional parts.
3. All specifications and design characteristics are subject to change without prior notice.
