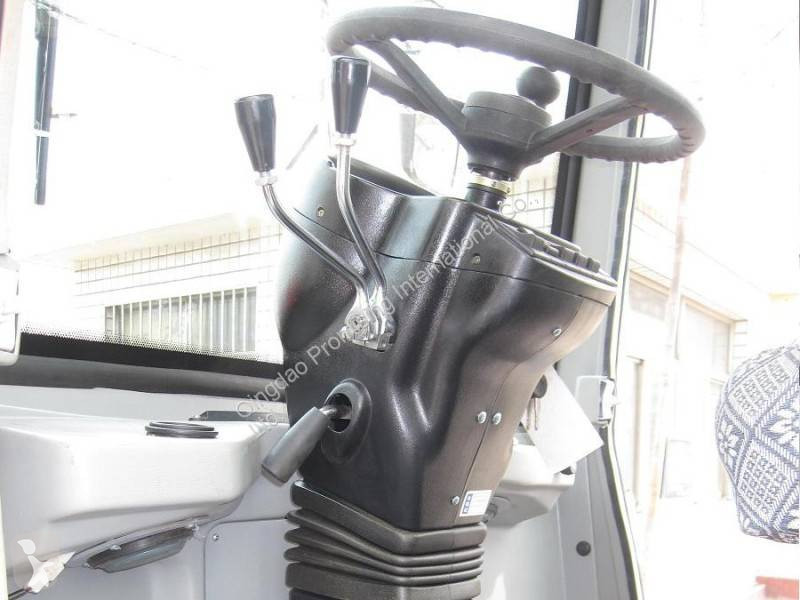

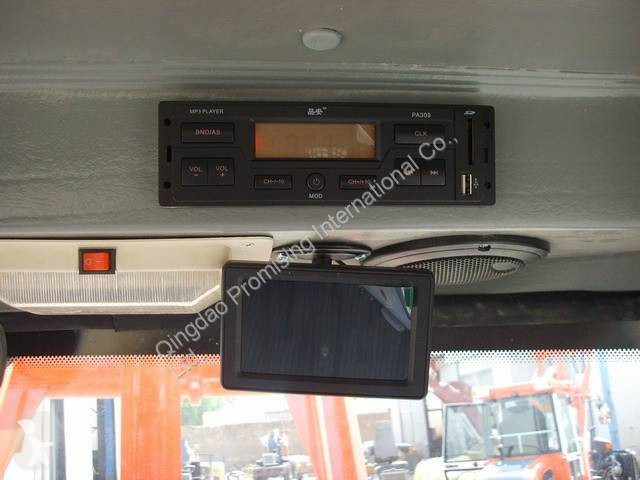

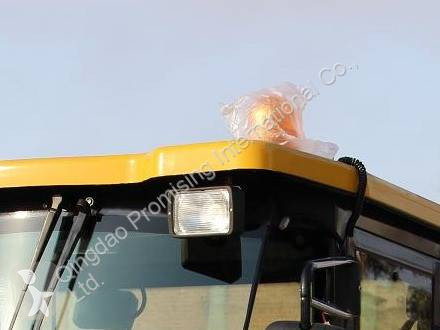

1.8 ton capacity small front loader with enclosed tilt cabin, adjustable suspension seat, digital radio & MP3 player, reversing camera, top beacon, hydraulic joystick control, and hydraulic quick hitch

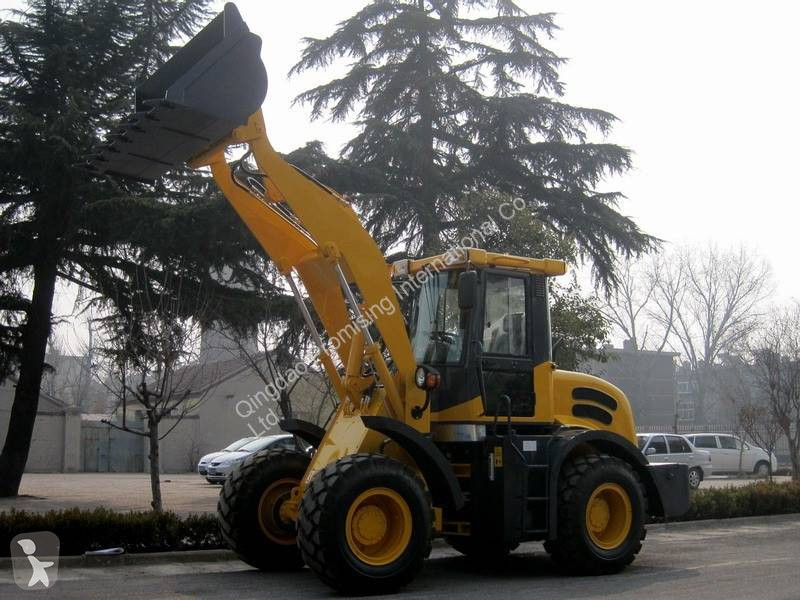

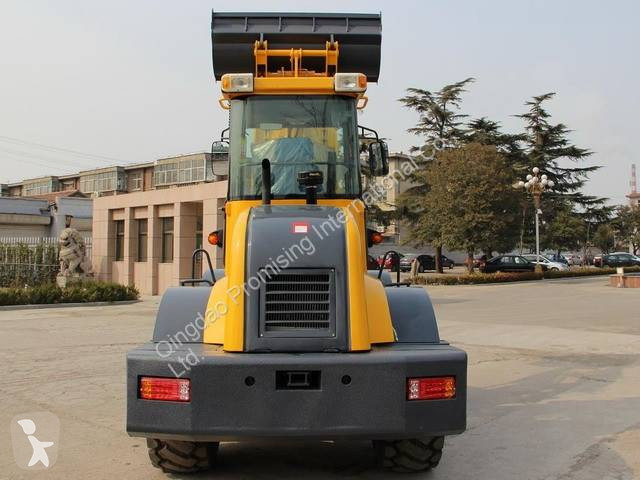

Hydraulic Wheel Loader ZL18F
Technical Specifications
1. Rated Load: 1800kg
2. Operating Weight: 4450kg
3. Rated Bucket Capacity: 0.85CBM
4. Bucket Width: 1900mm
5. Max. Breakout Force: 45KN
6. Max. Tilt Angle of Cabin: 30deg.
7. Max. Dumping Height: 2800mm
8. Max. Dumping Reach: 1050mm
9. Raising Time: < 5.0s
10. Min. Ground Clearance: 350mm
11. Overall Dimensions (L x W x H): 5600x1950x2750mm
12. Min. Turning Radius: 4600mm
13. Engine Model: XINCHAI A498BT1 (EURO III)
14. Engine Type: Four-cylinder, Inline, Water-cooled Evaporative, Four-stroke Diesel Engine
15. Rated Engine Power: 36.8kW
16. Rated Engine Speed: 2400rpm
17. Min. Fuel Consumption Rate: 230 g/kW.h
18. Transmission Mode: ZL265 Integrated/Split Hydraulic Torque Converter
19. Gear Shift: 1 Forward, 1 Reverse, 1 High Speed, 1 Low Speed
20. Max. Speed: 25km/h
21. Mode of Axle: ZL16 Hub Reduction Drive Axle
22. Wheel Tread: 1500mm
23. Wheel Base: 2150mm
24. Drive Mode: 4-wheel Drive
25. Hydraulic System Working Pressure: 16Mpa
26. Hydraulic System Working Pump Type: Gear Pump
27. Service Brake: Foot Pedal Vacuum Booster, Air over Hydraulic Caliper Disc Brake on 4 Wheels
28. Parking Brake: Hand Lever Flexible Shaft Controlled Disc Brake
29. Tyre Type Specification: 23.5/70-16-16PR
30. Front Tyre Pressure: 0.40Mpa
31. Rear Tyre Pressure: 0.35Mpa




Optional EURO5 Engine: 45kw YUNNEI DEF20CDF4 Engine

Optional Tyres: 31x15.5-15PR

Extra Hydraulic Lines, Rear Hydraulic
System, LED Lights, Float Function,
Tilting Cabin, Hydraulic Joystick

Note:
1. The technical specifications are for standard models only.
2. Other optional accessories and requirements are available upon request.
3. All photos are for reference only. Machines shown may include optional parts.
4. All specifications and design characteristics are subject to change without prior notice.
5. For all available loader attachments, please refer to our Loader Attachments Catalogue.
