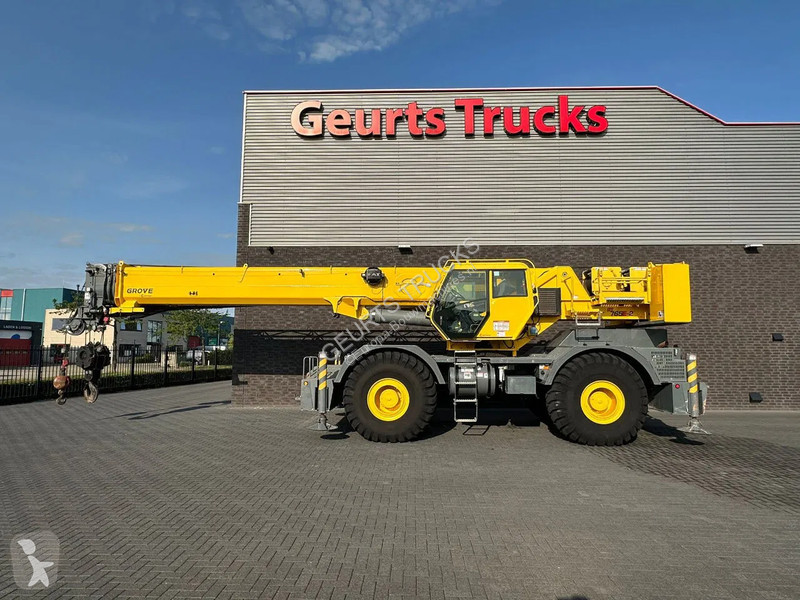

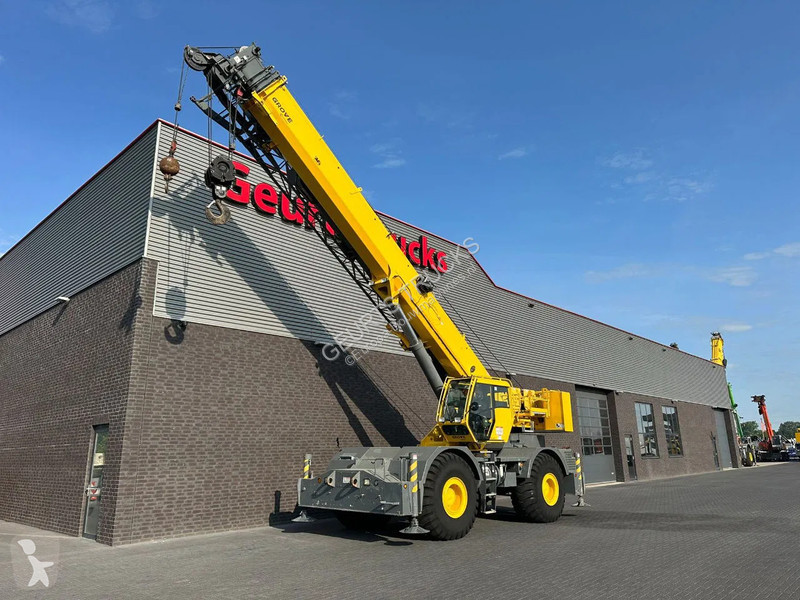

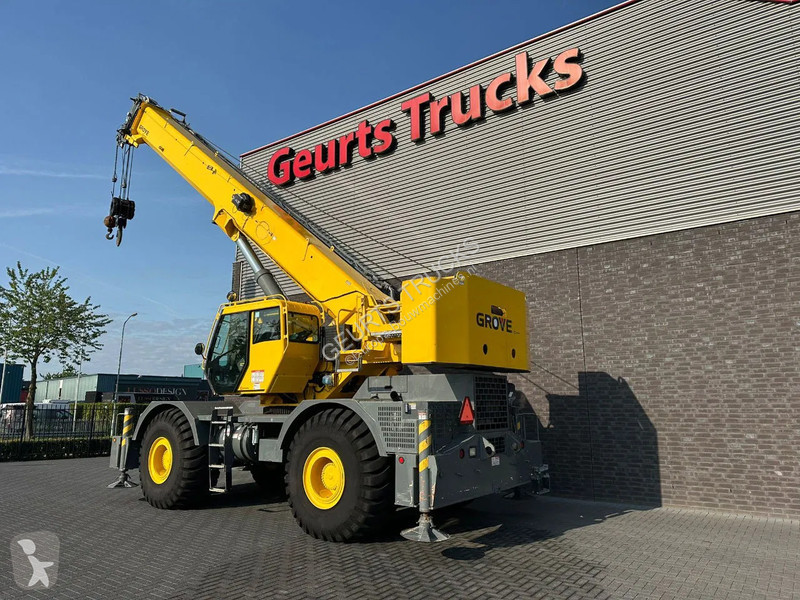

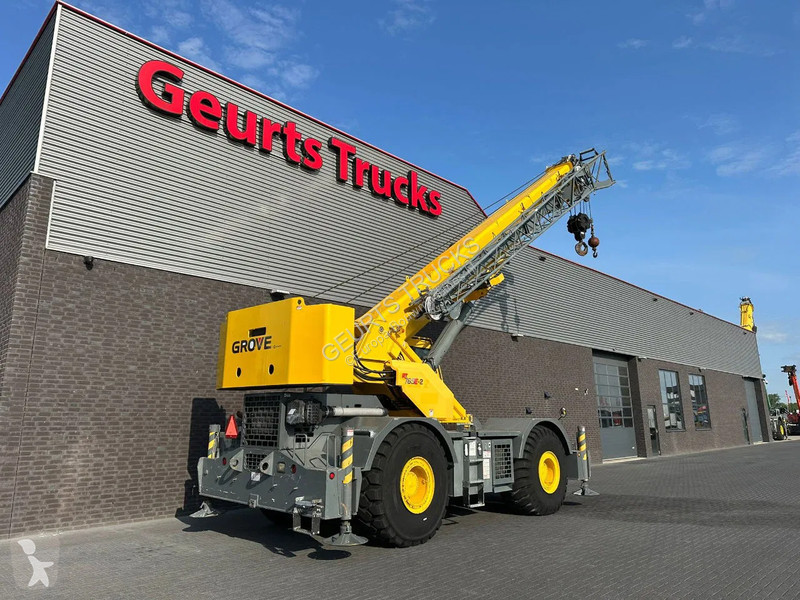

Mobilkran brugt Grove RT765E-2 ROUGH TERRAIN CRANE + JIB + 2 X WINCH

GROVE RT 765E-2 ROUGH TERRAIN CRANE + JIB + 2 X WINCH
MAX LIFT CAPACITY 65 TONN

Superstructure

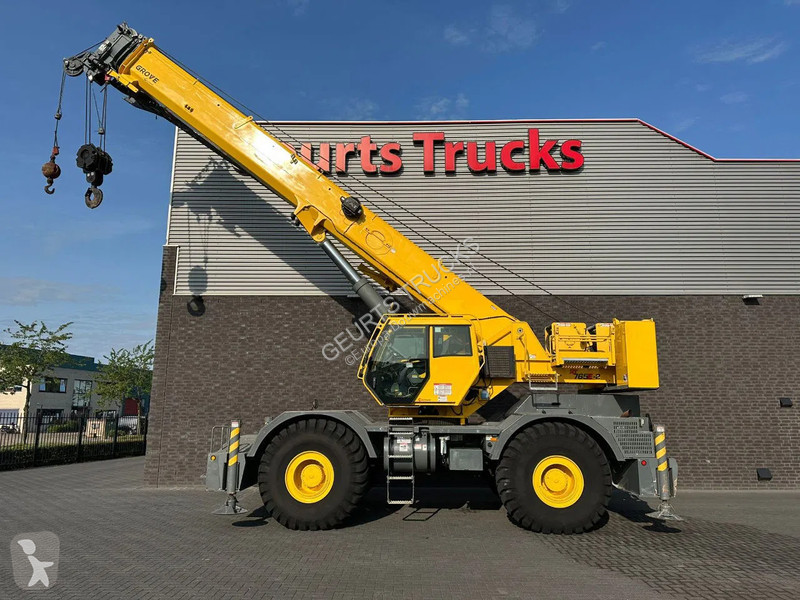

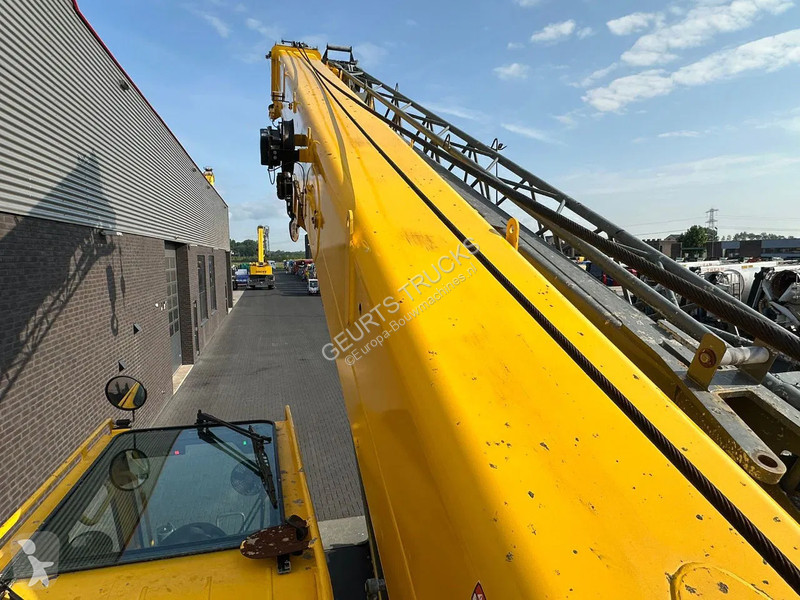

Boom 11 m – 33,5 m, four-section, full-power sequenced synchronized boom.
Maximum tip height: 36,4 m.

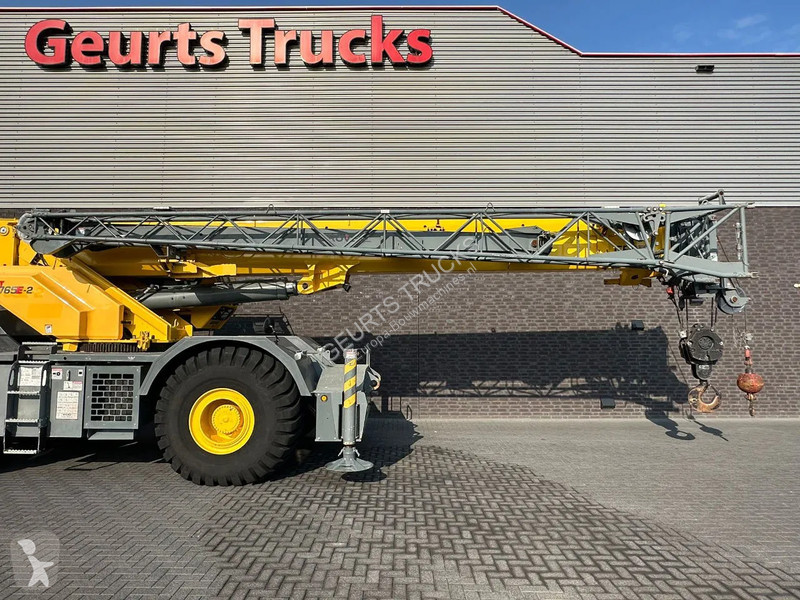

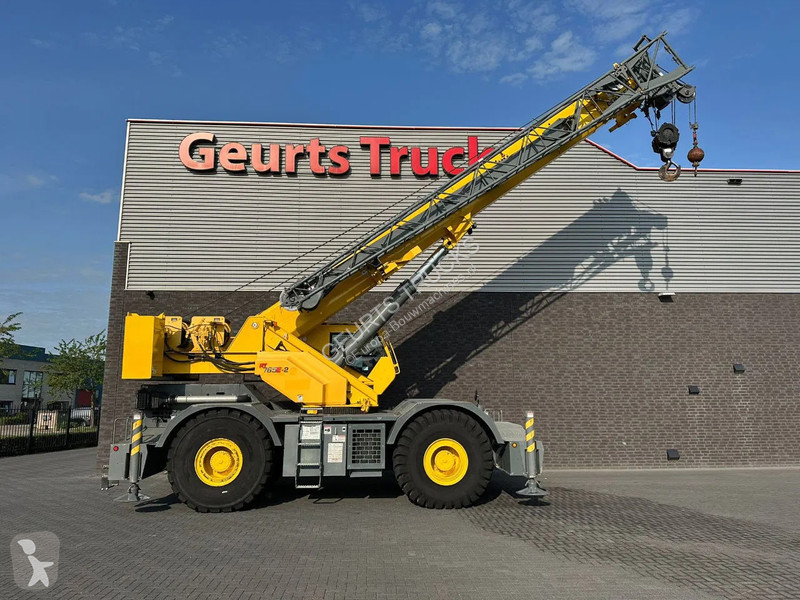

*Fixed swingaway extension
10,1 m offsettable lattice swingaway extension. Offsets 0°, 25° and 45°.
Stows alongside base boom section. Maximum tip height: 45,8 m.

*Bifold swingaway extension
10,1 m - 17,1 m bifold lattice swingaway extension. Offsetable at 0°, 25° and 45°.
Stows alongside base boom section. Maximum tip height: 52,8 m.

Boom elevation
One double acting hydraulic cylinder with integral holding valve provides elevation
from -3° to +78°.
Load moment and anti-two block system
Standard “Graphic Display” load moment and anti-two block system with
audio-visual warning and control lever lockout. These systems provide electronic
display of boom angle, length, radius, tip height, relative load moment, maximum
permissible load, load indication and warning of impending two-block condition.
The standard Work Area Definition System allows the operator to pre-select and
define safe working areas. If the crane approaches the pre-set limits, audio-visual
warnings aid the operator in avoiding job-site obstructions.

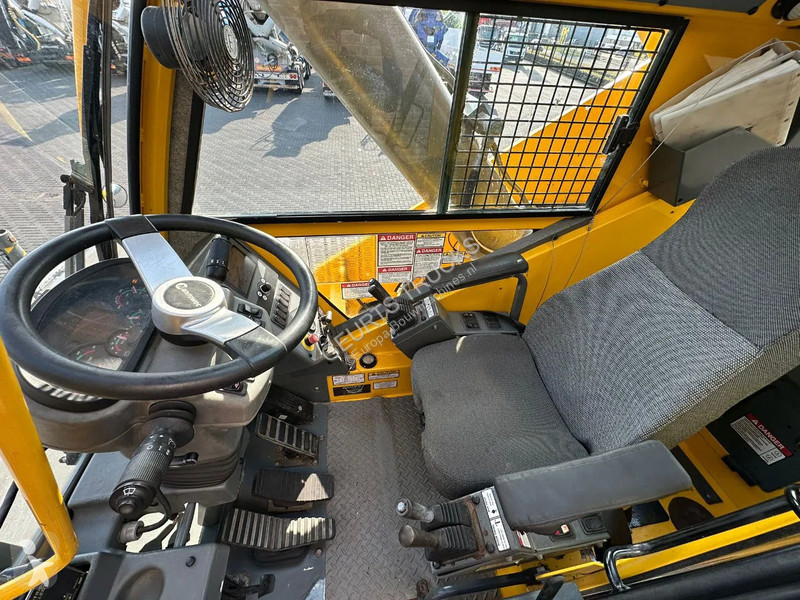

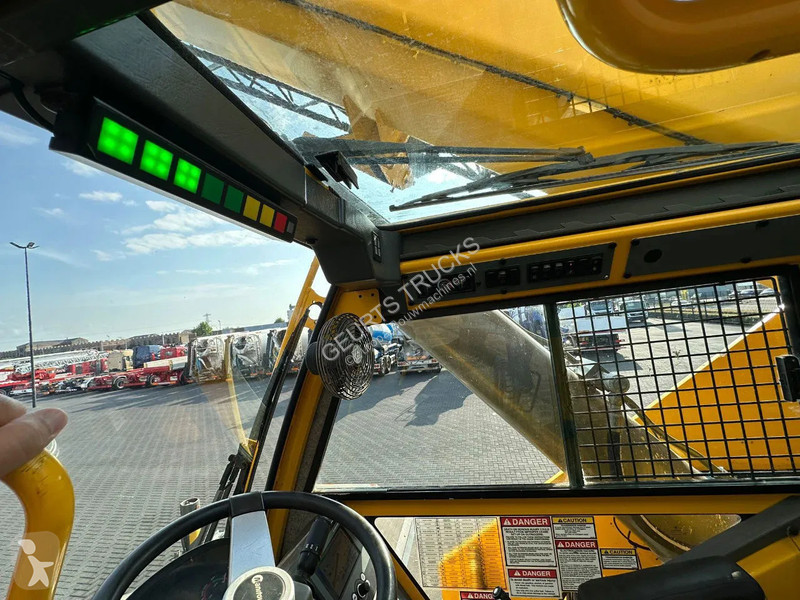

Cab
Full-vision, all-steel fabricated with acoustical lining and tinted safety glass
throughout. Deluxe seat incorporates armrest-mounted hydraulic single-axis
controllers. Dash panel incorporates gauges for all engine functions. Other standard
features include: hot water heater, cab circulating air fan, sliding side and rear
windows, sliding skylight with electric wiper and sunscreen, electric windshield
wash/wipe, fire extinguisher and seat belt, air conditioning.

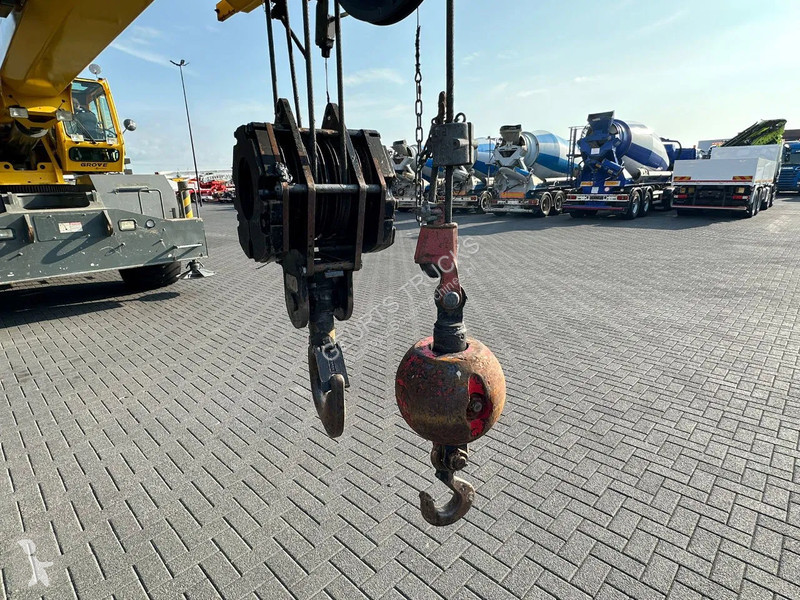

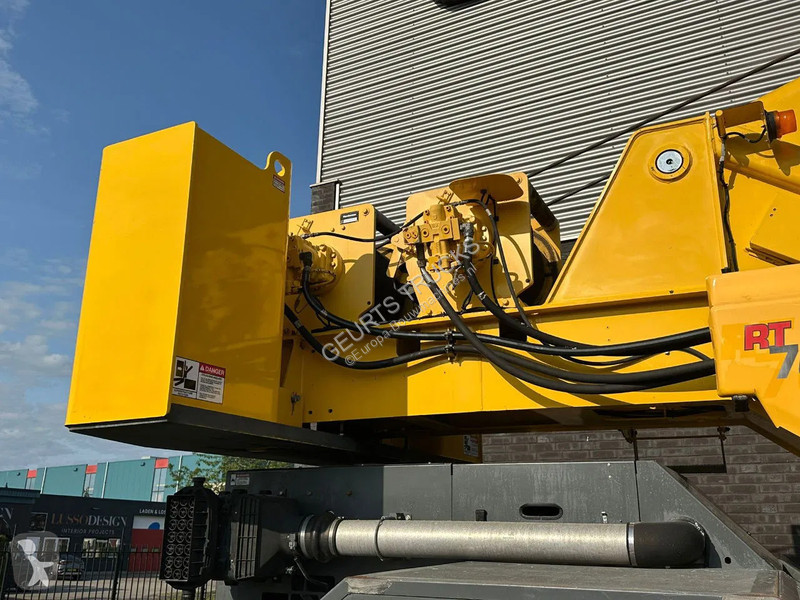

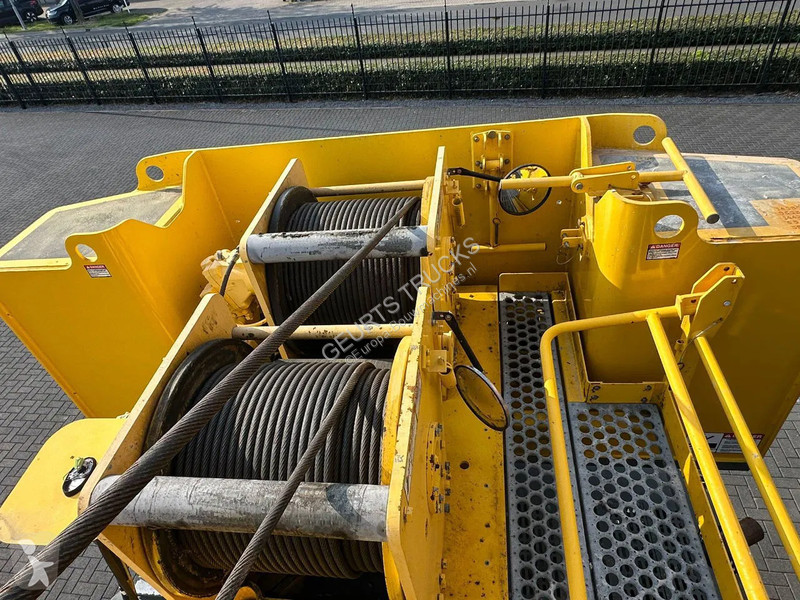

Hoist
Planetary reduction with automatic spring applied multi-disc wet brake.
Grooved drum. Electronic hoist drum rotation indicators, and hoist drum cable
followers.
Maximum Single Line Pull: 8 246 kg.
Maximum Permissible Line Pull:
7 620 kg with standard 6X37 class rope.
7 620 kg. with optional 35X7 class rope.
Maximum Single Line Speed: 156 m/min.
Rope Construction: 6X37 EIPS IWRC,
35x7 Flex-X, Rotation Resistant
Rope Diameter: 19mm. Rope Length: Main Hoist: 152 m - Optional: 168 m.
Maximum Rope Stowage: 256 m.

Outriggers
Four hydraulic telescoping single-stage double box beam outriggers with
inverted jacks and integral holding valves. Three position setting, 0%, 50% and fully
extended. All steel fabricated, quick release type outrigger floats, 610 mm diameter.
Maximum outrigger pad load: 36 606 kg. Controls and crane level indicator located
in cab.

Engine
Cummins QSB6.7
179 KW
EPA

Transmission
Spicer powershift with 6 forward and 6 reverse speeds.
Front axle disconnect for 4 x 2 travel.

Drive/Steer
4 x 4. Fully independent power steering:
Front: Full hydraulic steering wheel controlled.
Rear: Full hydraulic switch controlled.
Provides infinite variations of 4 main steering modes: front only, rear only,

Type: Rough terrain crane
Lifting capacity: 65.000 kg
Lift height: 5.800 cm
Make of bodywork: GROVE RT765E-2
General condition: very good
Technical condition: very good
Visual appearance: very good

Typ: Geländekran
Hubkapazität: 65.000 kg
Hubhöhe: 5.800 cm
Marke des Aufbaus: GROVE RT765E-2
Allgemeiner Zustand: sehr gut
Technischer Zustand: sehr gut
Optischer Zustand: sehr gut

Type: Ruw-terreinkraan
Hefcapaciteit: 65.000 kg
Hefhoogte: 5.800 cm
Merk opbouw: GROVE RT765E-2
Algemene staat: zeer goed
Technische staat: zeer goed
Optische staat: zeer goed
