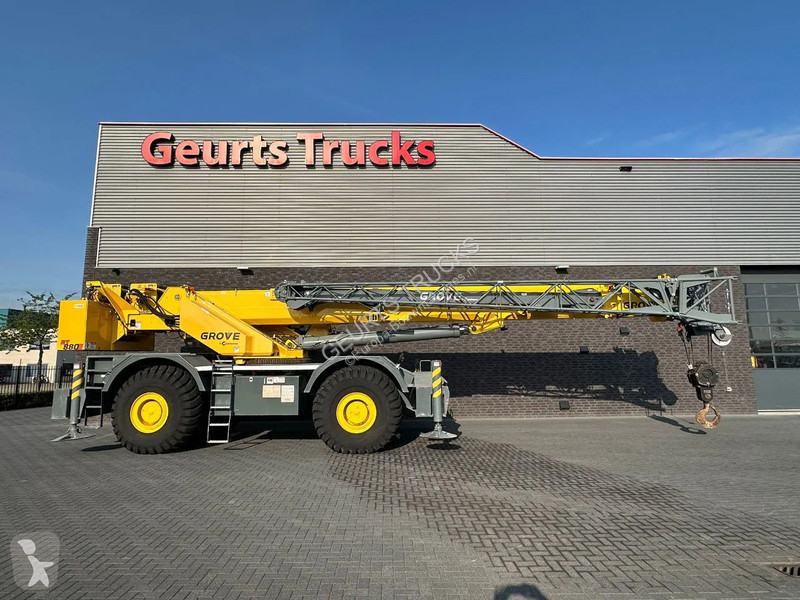

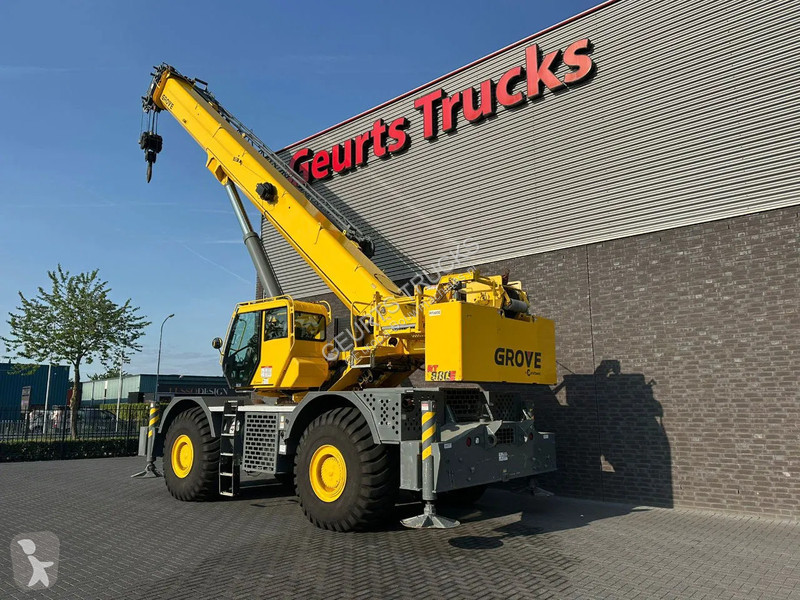

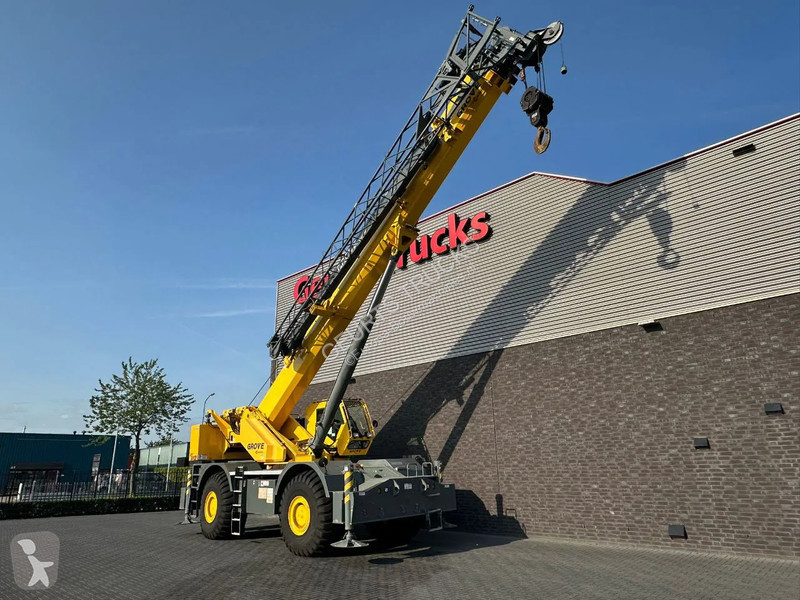

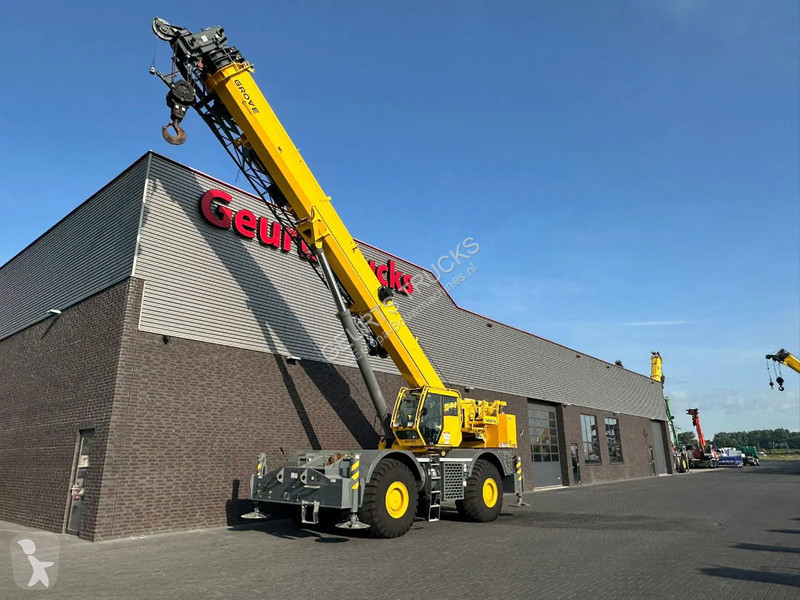

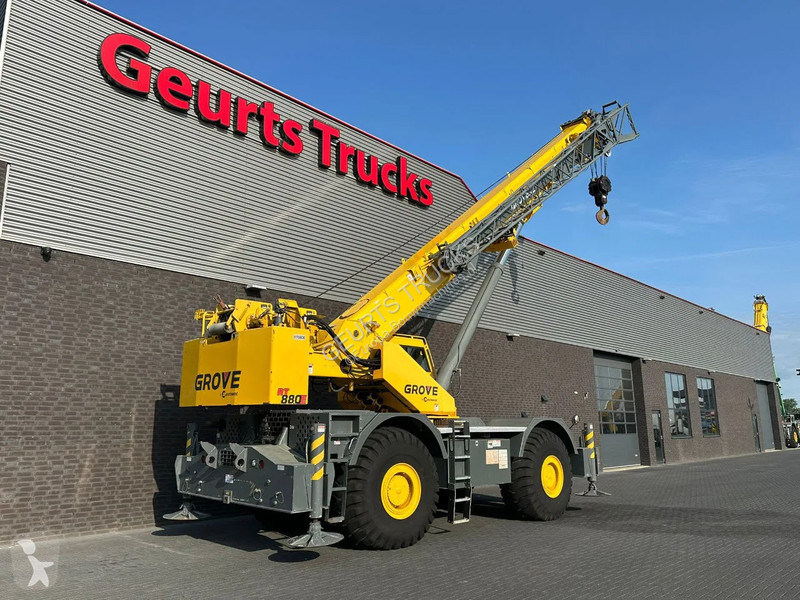

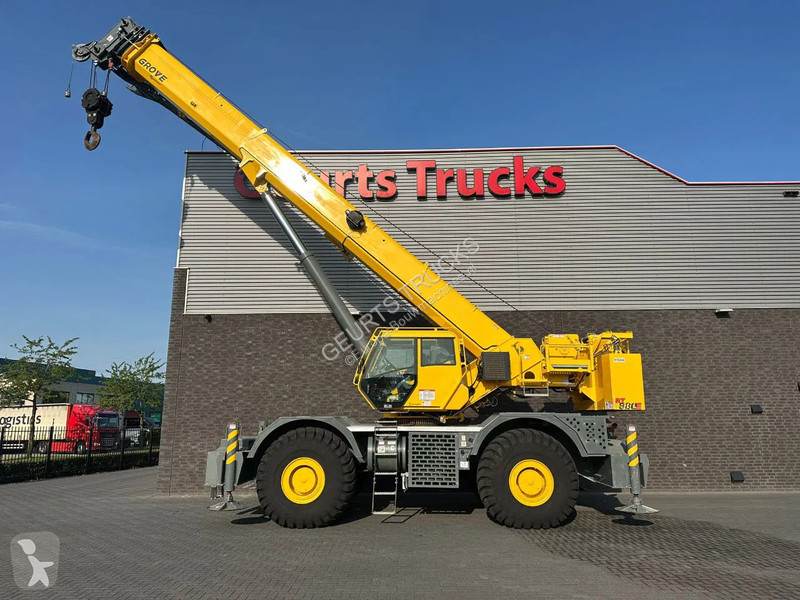

Mobilkran brugt Grove RT880E ROUGH TERRAIN CRANE + JIB + 2 x WINCH

GROVE RT880E ROUGH TERRAIN CRANE + JIB + 2 x WINCH
1ST USE IN 2016

Capacity: 80t
8165 kg (18,000 lb) hydraulic removable counterweight •

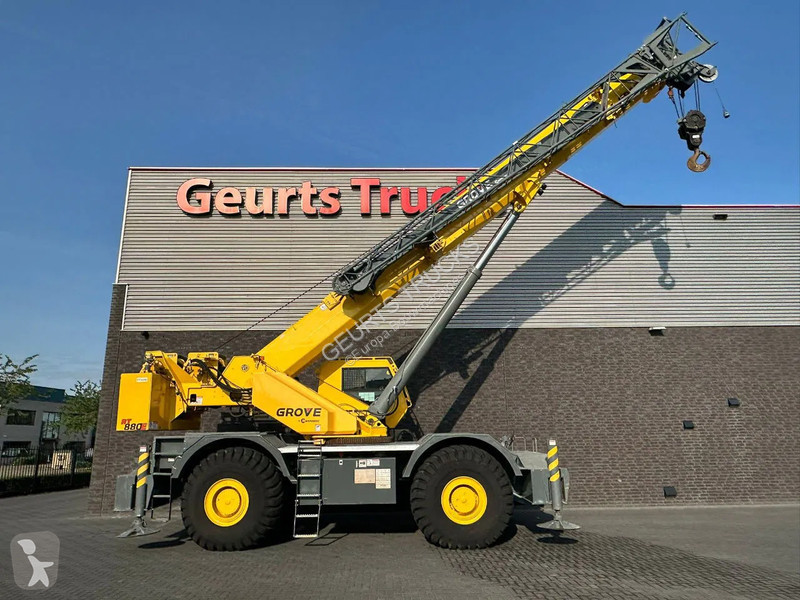

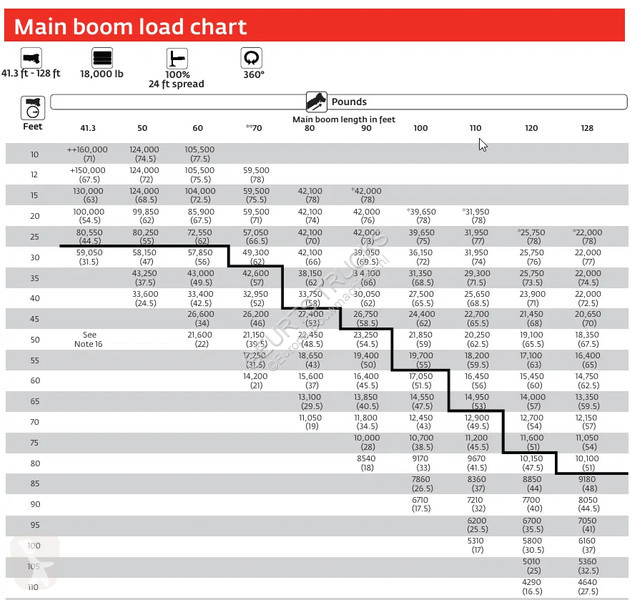

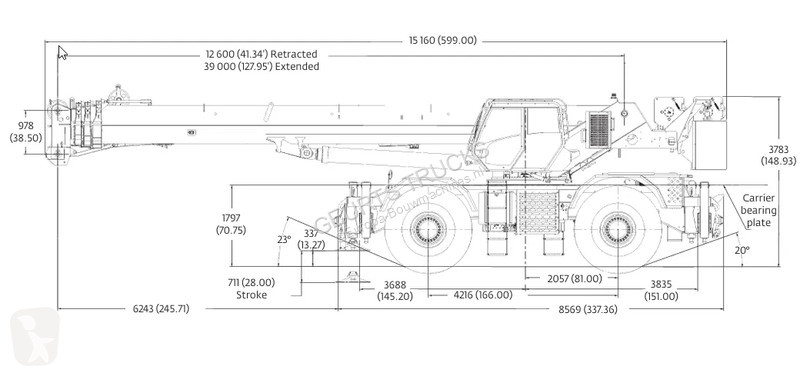

Grove MEGAFORM™ Boom 12,6 m - 39,0 m (41 ft - 128 ft ) four section, sequenced synchronized full power boom.
Maximum tip height: 41,9 m (138 ft).

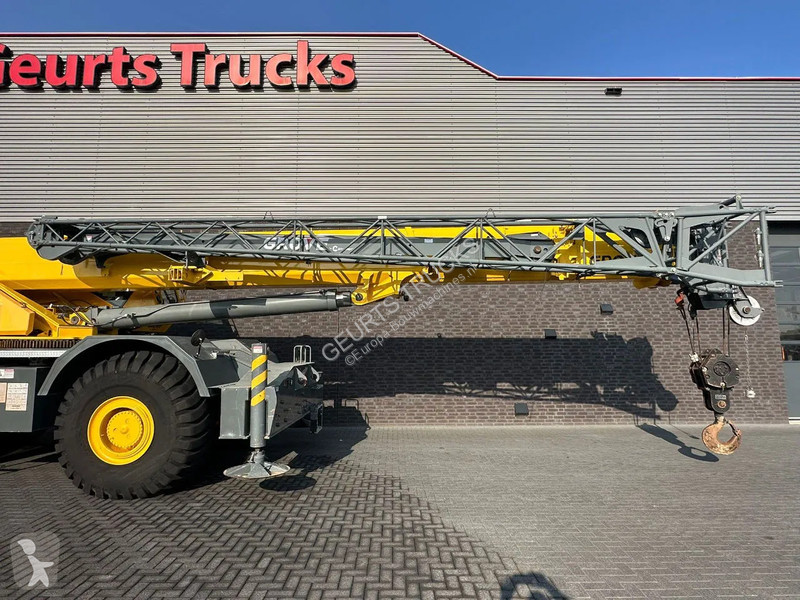

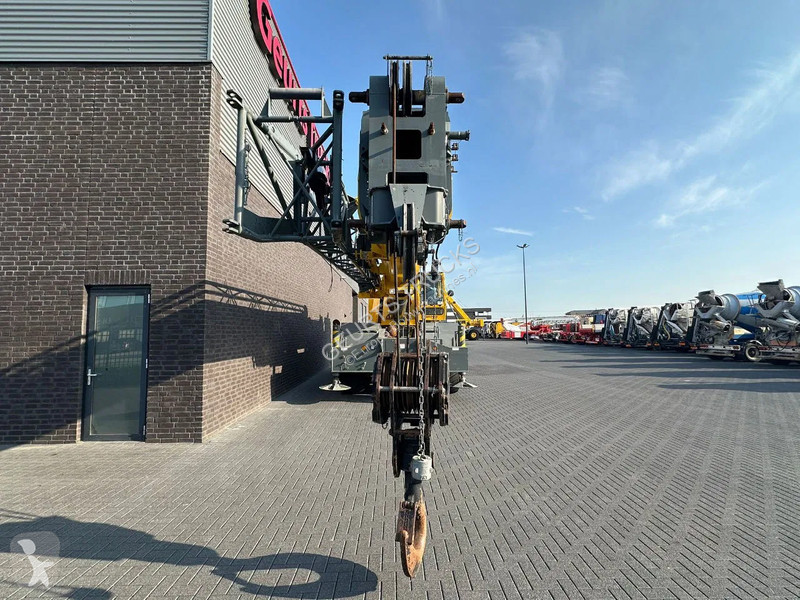

Lattice extension 10,0 m - 17 m (33 ft - 56 ft) offsettable bi-fold lattice swingaway extension.
Offsets 0˚, 20˚, and 40˚. Stows alongside base boom section.
Maximum tip height: 58,6 m (192 ft).

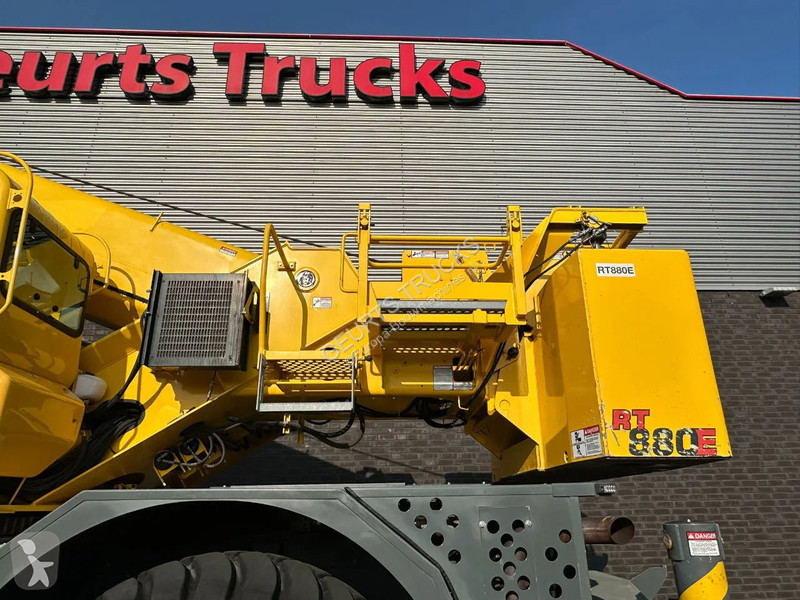

Counterweight 8165 kg (18,000 lb). Hydraulically installed and removed.

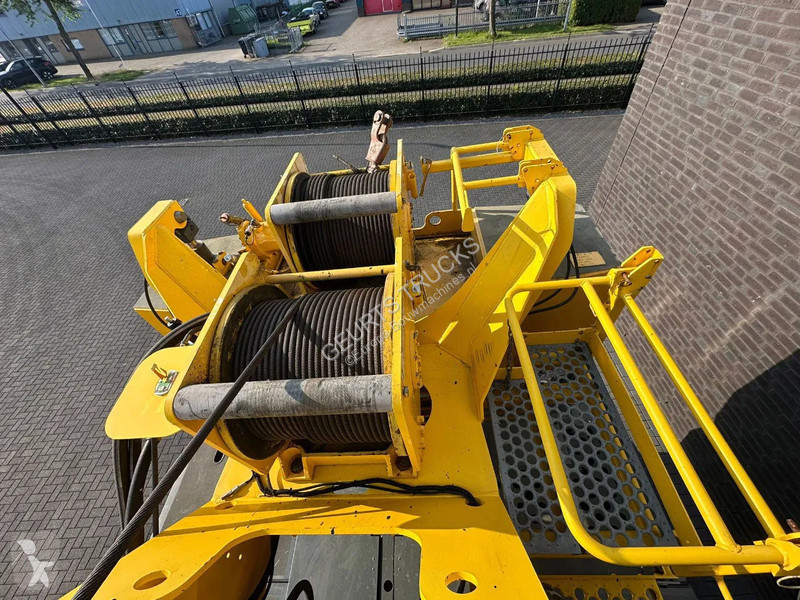

Hoist specifications (HP30-19G) main and auxiliary hoist Planetary reduction with automatic spring applied multi-disc wet brake.
Electronic hoist drum rotation indicators and hoist drum cable followers.
Maximum single line pull: 1st layers: 9185 kg (20,250 lb) 3rd layer: 7715 kg (17,010 lb) 5th layer: 6650 kg (14,660 lb)
Maximum permissible line pull: 7620 kg (16,800 lb) with 6 x 37 class rope 7620 kg (16,800 lb) with 35 x 7 class rope
Maximum single line speed: 156 m/ min (514 fpm)
Rope construction: 6 x 36 EIPS IWRC, Special Flexible 35 x 7 Flex-X, Rotation Resistant
Rope diameter: 19 mm (3/4 in) Rope length: Main hoist: 182,8 m (600 ft) Auxiliary hoist: 182,8 m (600 ft) Maximum rope stowage: 256 m (841 ft)

Engine (Tier IV) Cummins QSB 6.7L diesel, six-cylinder, turbo-charged. 205 kW (275 bhp) at 2500 rpm.
Meets emission requirements per U.S. E.P.A., Tier IV and E.U. Stage III B.
Maximum torque: 992 Nm (732 ft lb) at 1500 rpm. Fuel requirement: Minimum of 15 ppm sulphur content (Ultra Low Sulphur Diesel).

Transmission Full rangeshift with 6 forward and 6 reverse speeds. Front axle disconnect for 4 x 2 travel.
Drive 4 x 4 Steering Fully independent power steering: Front: Full hydraulic, steering wheel controlled. Rear: Full hydraulic, switch controlled.
Provides infinite variations of 4 main steering modes: front only, rear only, crab and coordinated. Rear steer indicator. Turning radius - 25 ft.

Brakes Full hydraulic split circuit brakes operating on all wheels. Spring-applied, hydraulically released parking brake mounted on front axle.

Type: Rough terrain crane
Field of application: Construction
Lifting capacity: 75.000 kg
Lift height: 7.060 cm
Make of bodywork: GROVE RT880E
General condition: very good
Technical condition: very good
Visual appearance: very good

Typ: Geländekran
Verwendungszweck: Bauwesen
Hubkapazität: 75.000 kg
Hubhöhe: 7.060 cm
Marke des Aufbaus: GROVE RT880E
Allgemeiner Zustand: sehr gut
Technischer Zustand: sehr gut
Optischer Zustand: sehr gut

Type: Ruw-terreinkraan
Toepassingsgebied: Bouw
Hefcapaciteit: 75.000 kg
Hefhoogte: 7.060 cm
Merk opbouw: GROVE RT880E
Algemene staat: zeer goed
Technische staat: zeer goed
Optische staat: zeer goed
